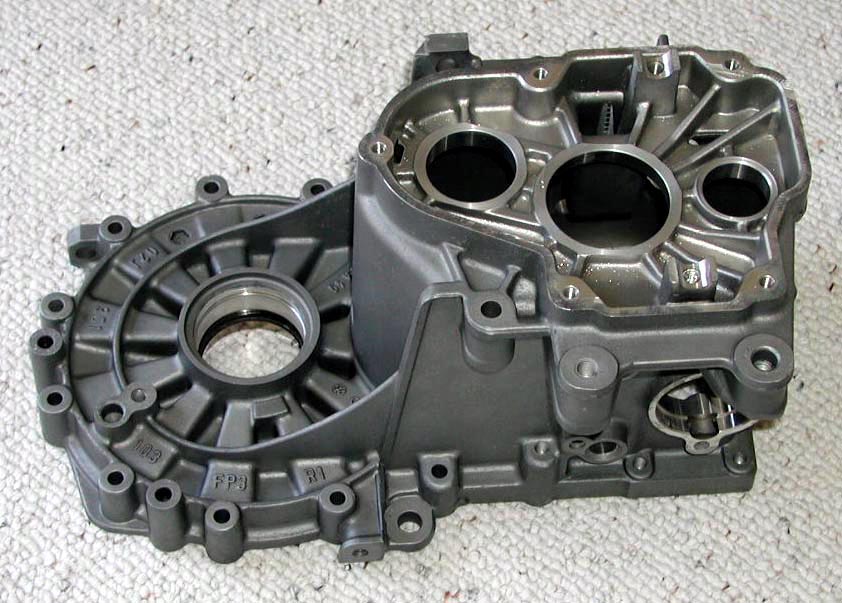

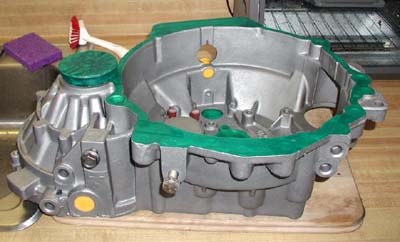

Clutch Housing Powder Coated - Fresh out of the oven!
|
|
|

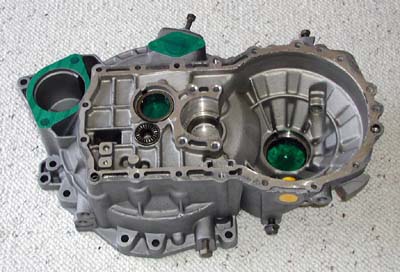

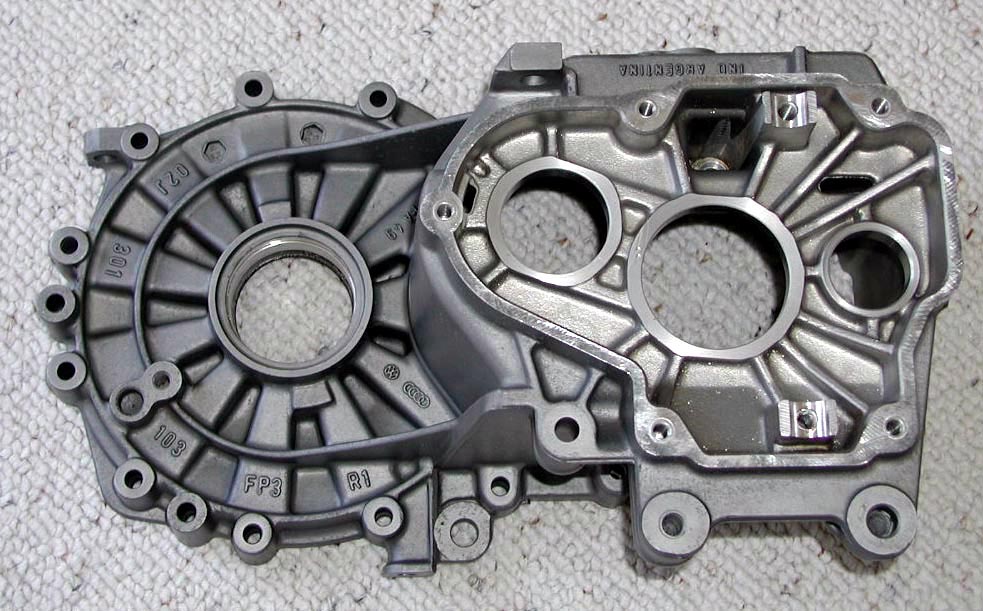

Tranny Housing Freshly Powder Coated
|
|

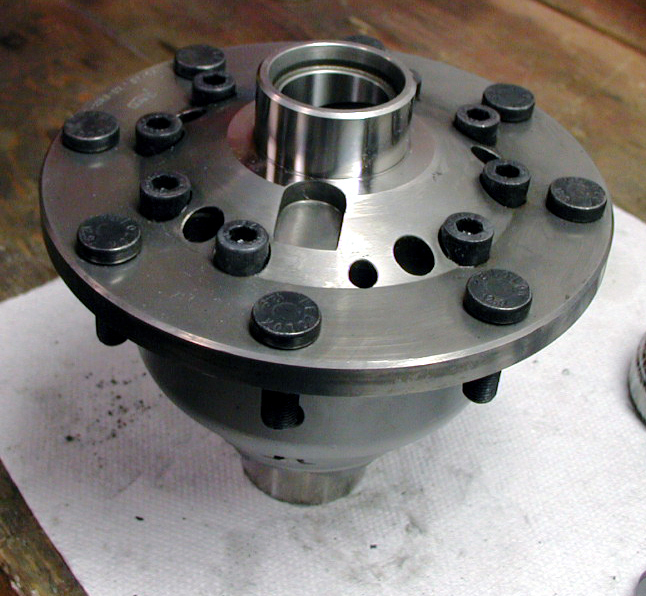

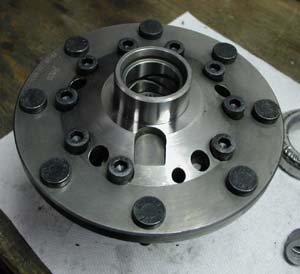

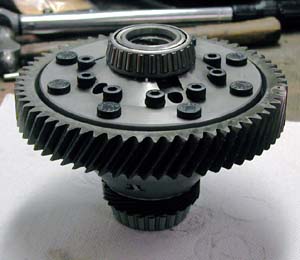

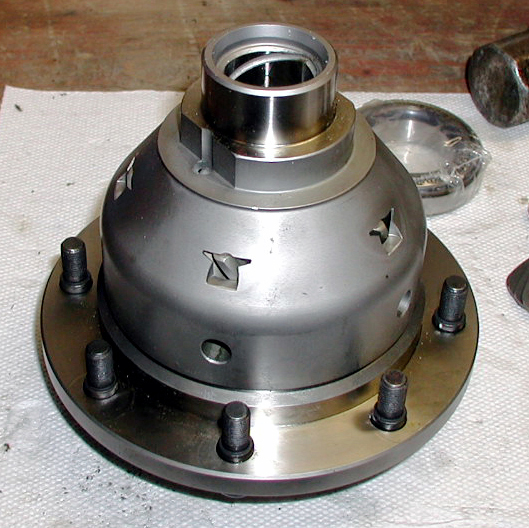

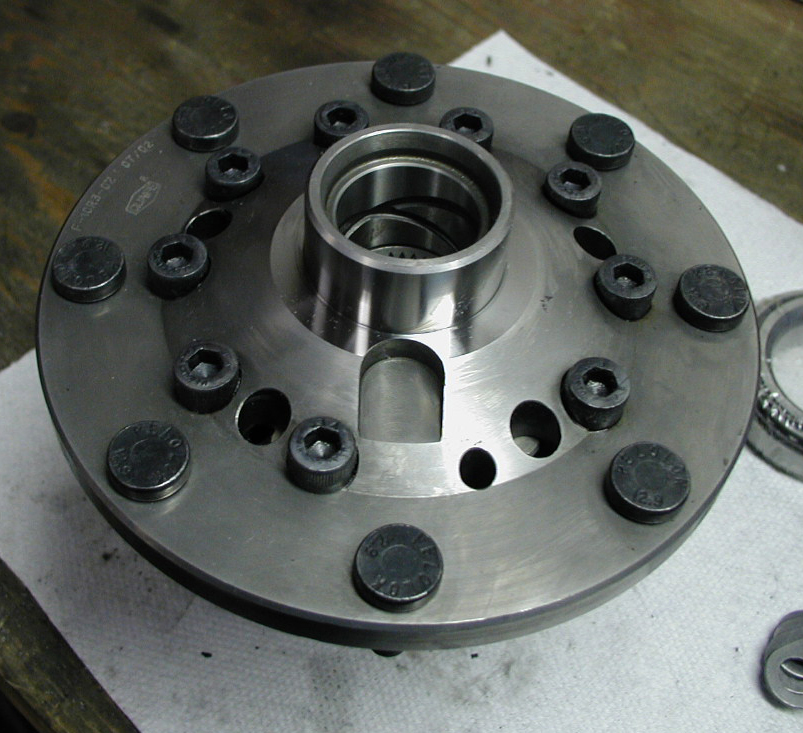

Brand new Quaife patiently awaiting assembly
|
...and bolt kit
|
|
Tapered Roller Bearing
|
Speedo Drive Gear + Tapered Roller Bearing
|

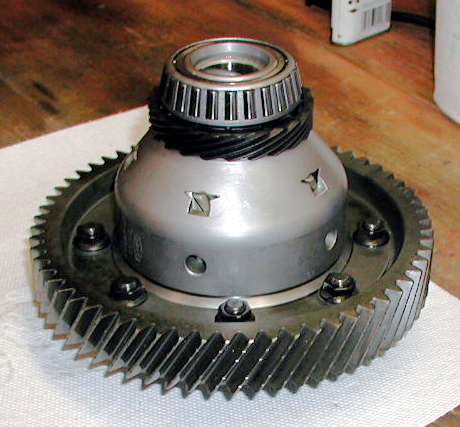

Final Drive Gear finally on!
|

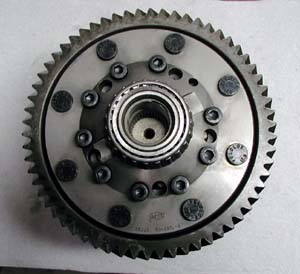

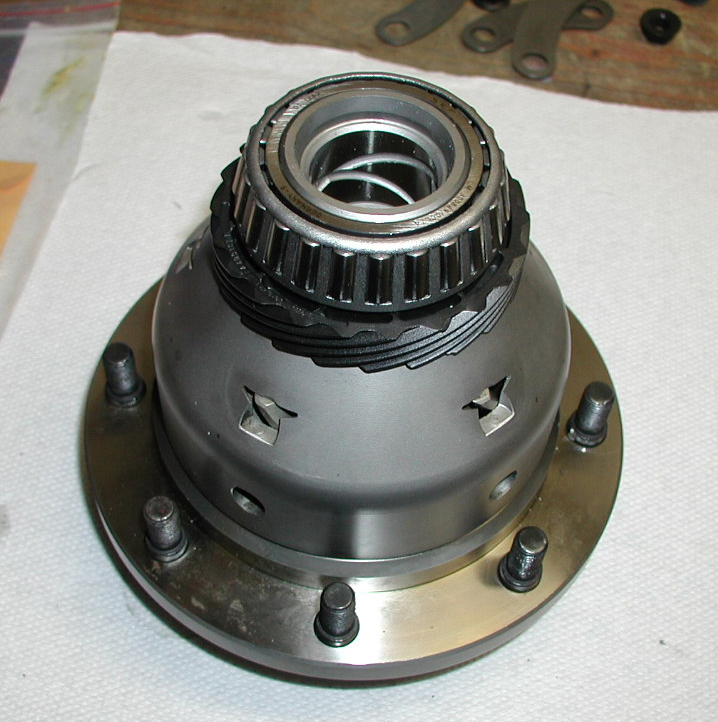

An Assembled Quaife is a Happy Quaife!!
|
The Big Guy!
|
|
![](ioutput_t.jpg)

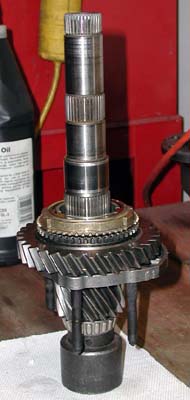

Pinion Shaft and Bearing Support
|
![](joutput_t.jpg)

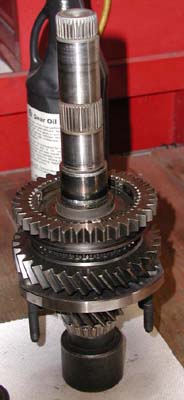

1st Gear + Synchro Ring
|
![](koutput_t.jpg)
1st/2nd Gear Synchro Hub
|
![](loutput_t.jpg)

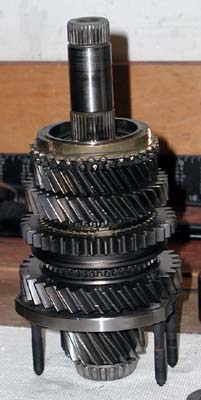

2nd Gear Synchro Ring + 2nd Gear
|
![](moutput_t.jpg)
3rd Gear and 3rd Gear Synchro Ring
|
![](noutput_t.jpg)

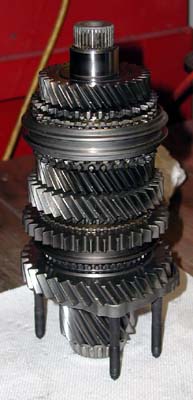

3rd/4th Gear Synchro Hub
|
![](ooutput_t.jpg)

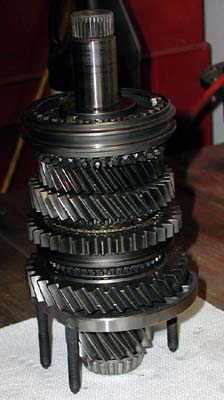

4th Gear Synchro Ring + 4th Gear
|
![](poutput_t.jpg)

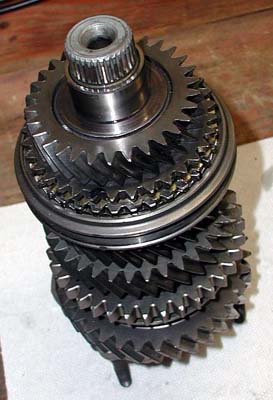

Everything an assembled pinion shaft could hope to be....!
|
![](qassembly_t.jpg)

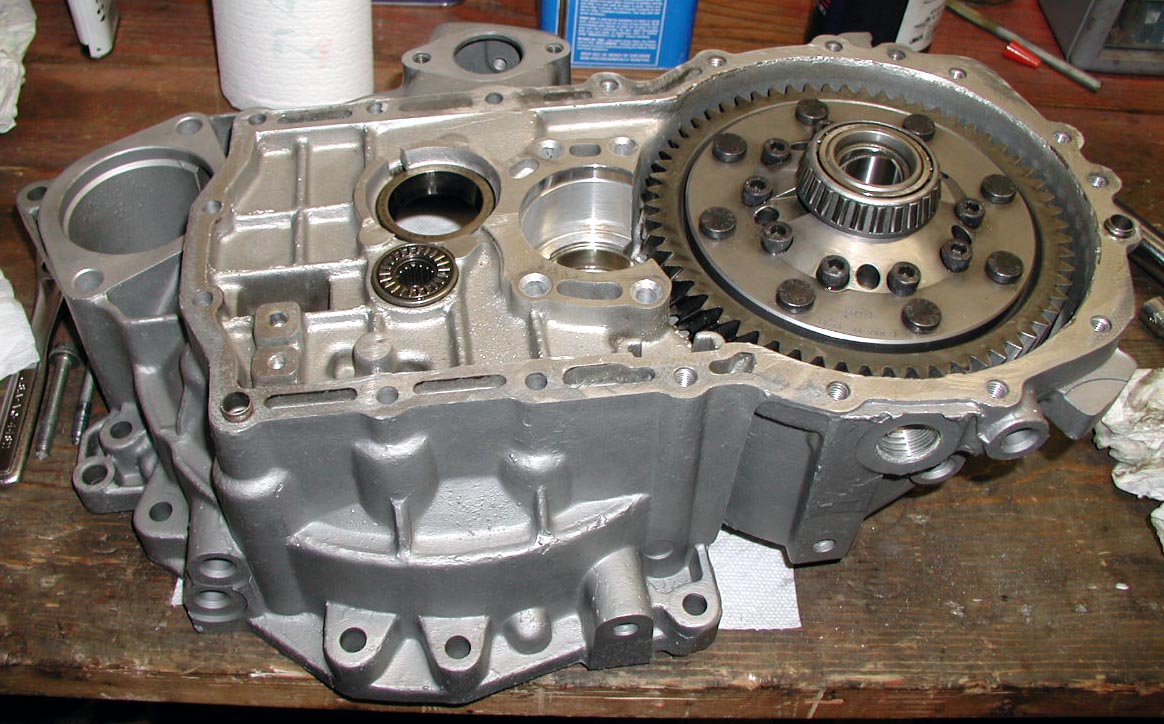

Clutch Housing with Quaife
|

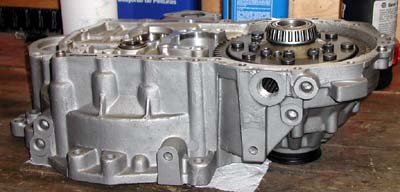

![](rassembly_t.jpg)
|
![](sassembly_t.jpg)
Clutch Housing + Quaife + Pinion Shaft
|

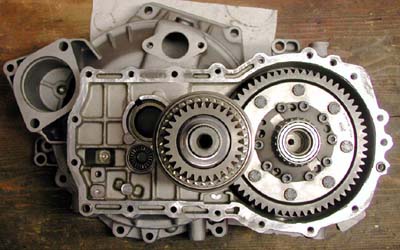

![](tassembly_t.jpg)

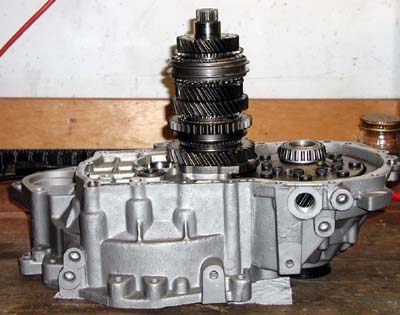

Everyone Happy in their Home!
|
![](uassembly_t.jpg)

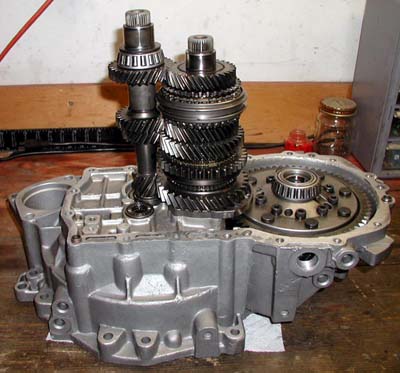

Input Shaft
|
![](vassembly_t.jpg)

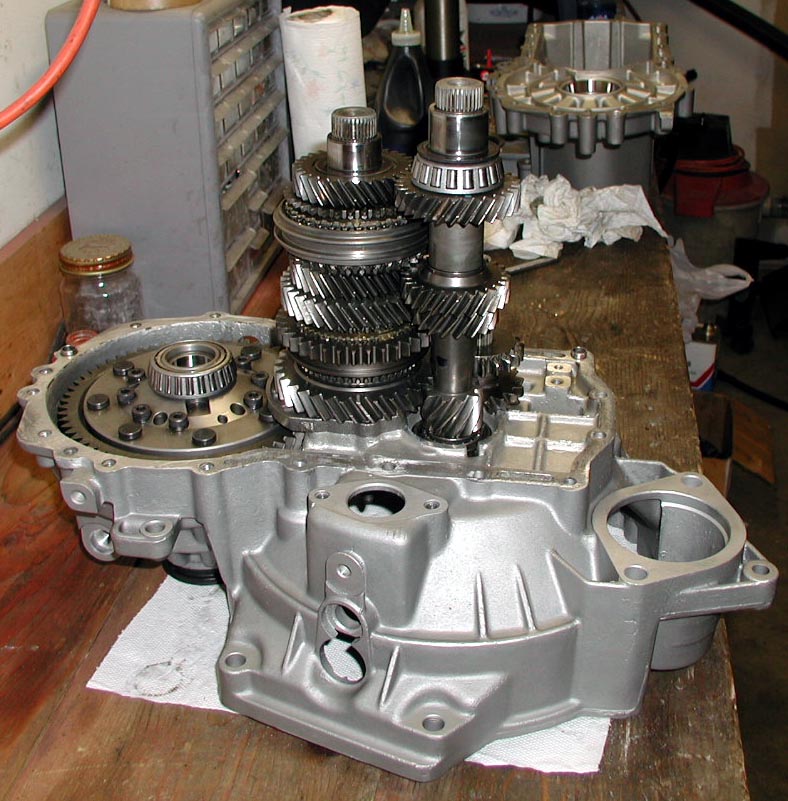

Reverse Shaft
|
![](wassembly_t.jpg)

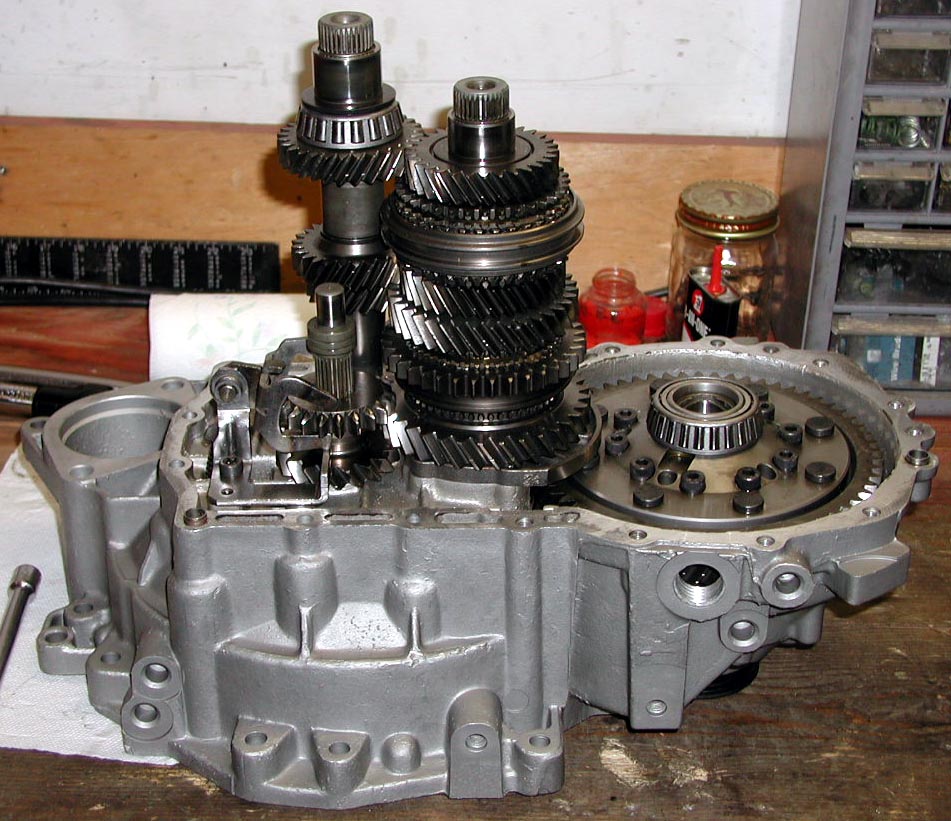

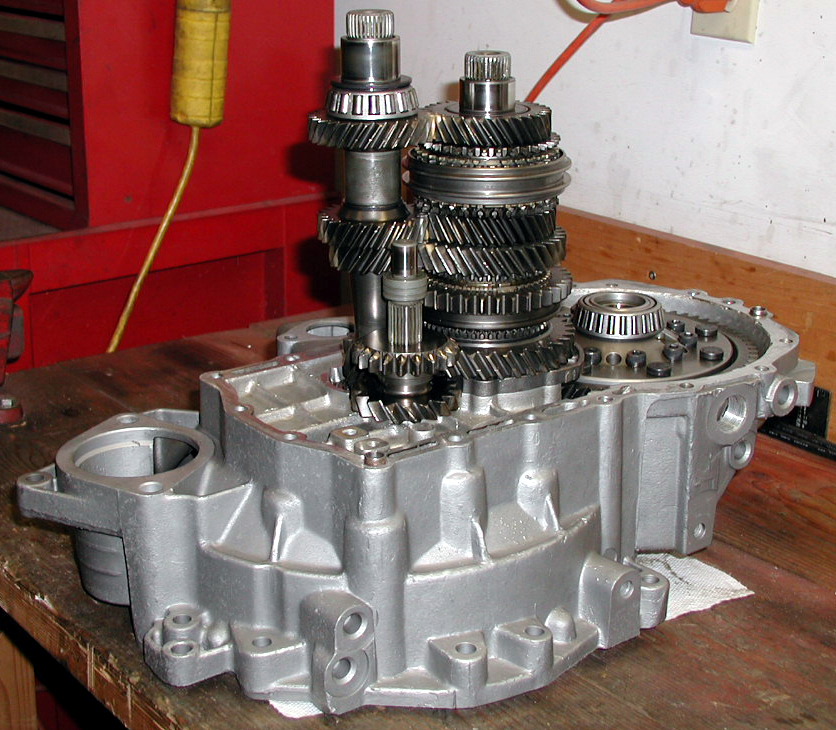

All the shafts happy in their home!!
|
![](xgearselector_t.jpg)
Reverse Gear Selector Fork
|
![](ygearselector_t.jpg)

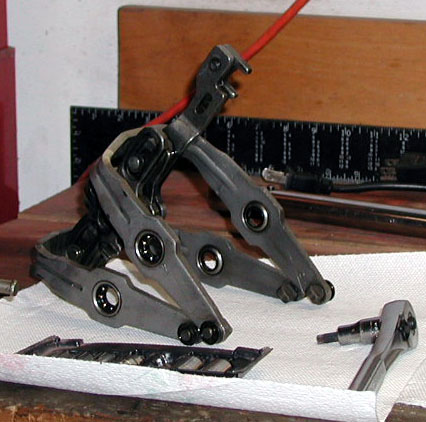

1st/2nd and 3rd/4th Gear Selector Forks.
The lumbering beast sleeps!
|

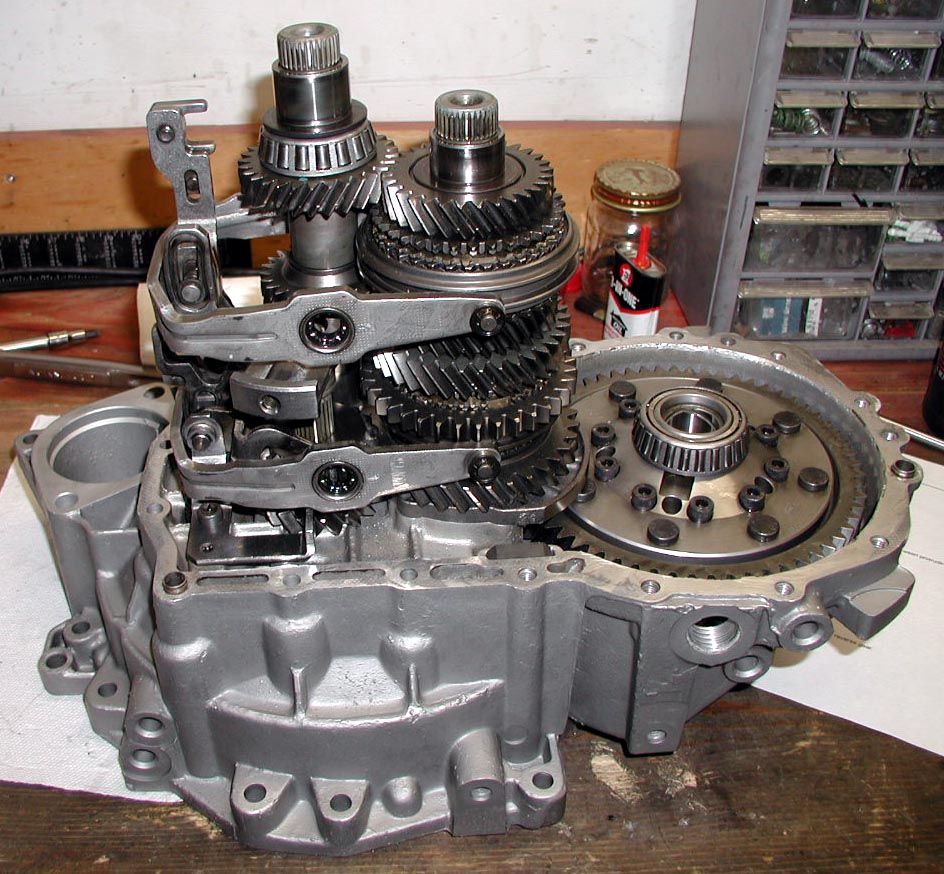

![](zgearselector_t.jpg)
Awakening from its nap, the beast leaps onto its prey!
|
![](zgearselector1_t.jpg)

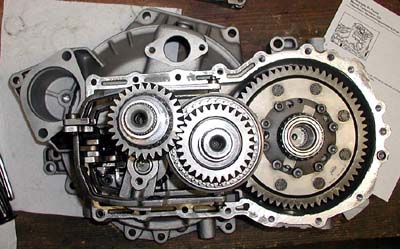

The defenseless gears are unable to combat the restrictive grip of the selector forks....
|
![](zgearslector2_t.jpg)

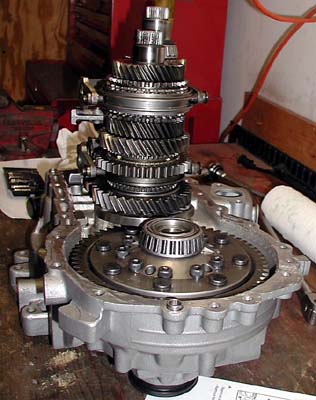

Having sucessfully subdued its prey, the beast sits back to enjoy it's spoils....
|
![](zz1fifthgear_t.jpg)

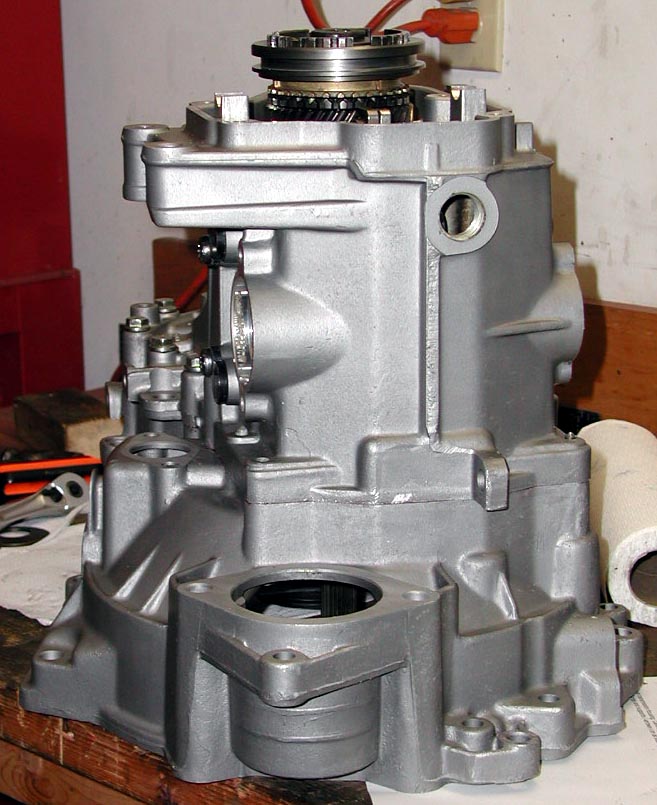

Tranny Housing On! 5th Gear On! 5th Gear Synchro Hub and Synchro Ring On!
|
![](zz2fifthgear_t.jpg)

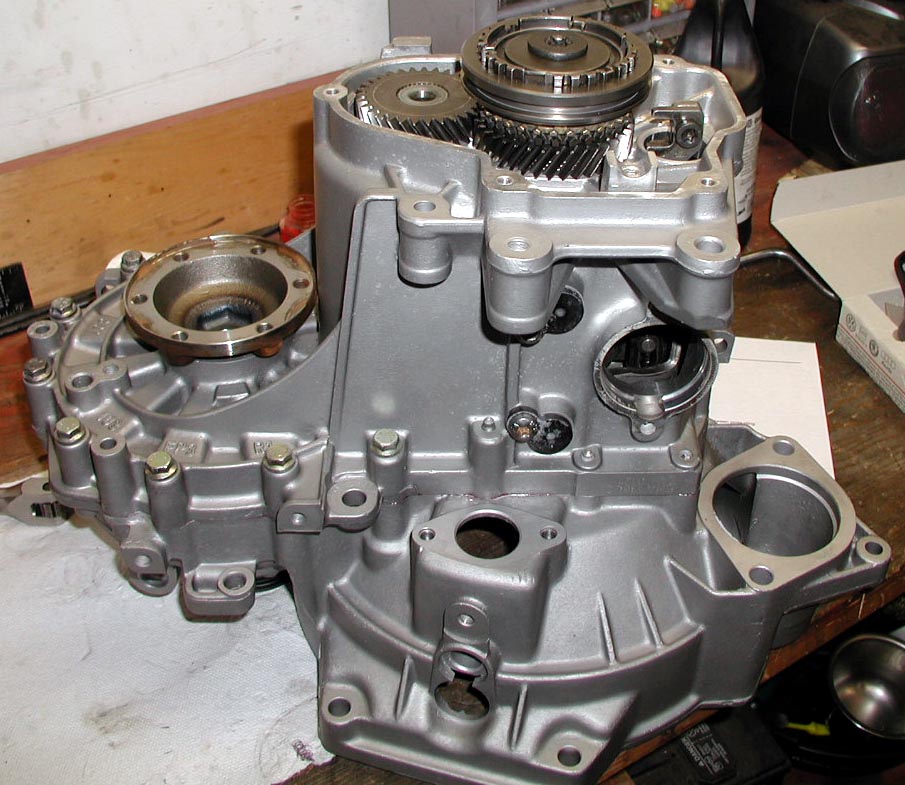

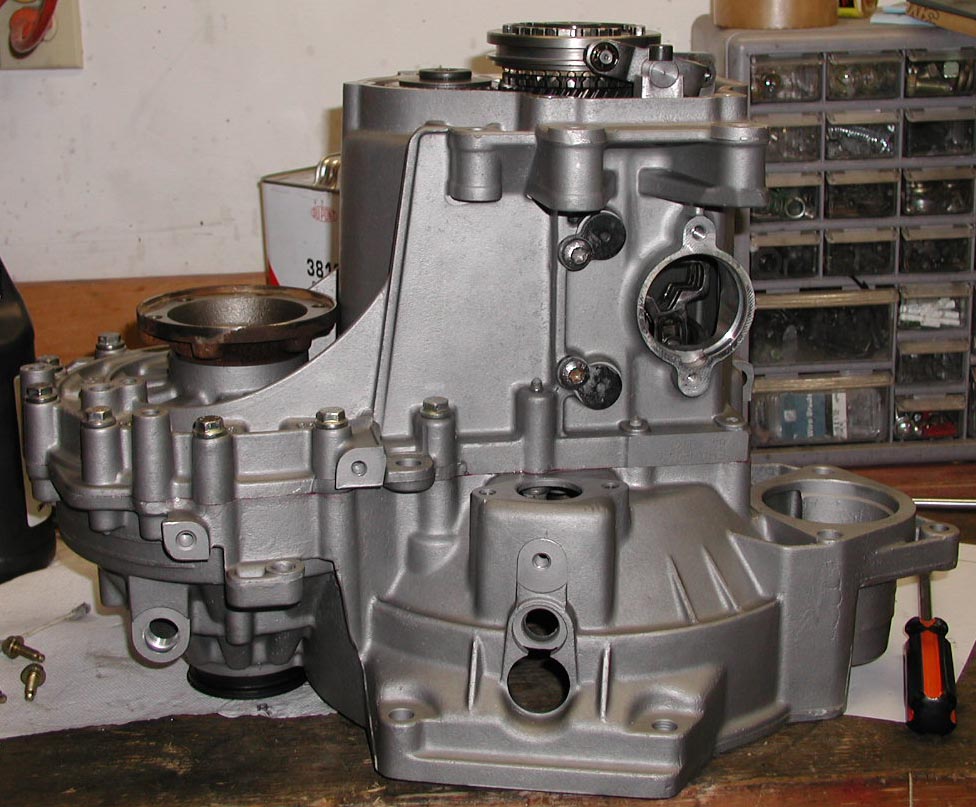

The beast raises it's head to scan the horizon for it's next victim! It sees 5th Gear within striking range.....
|
![](zz3fifthgear_t.jpg)
5th Gear Selector Fork
|
![](zz4fifthgear_t.jpg)

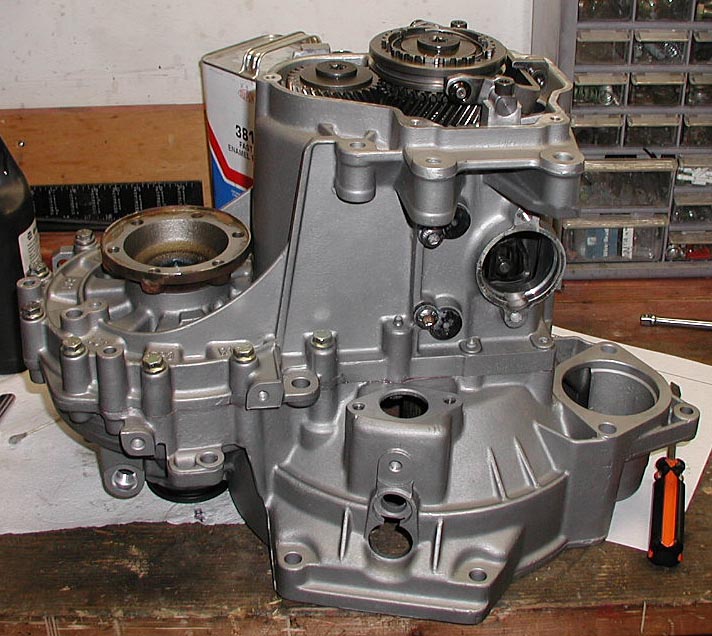

The beast sticks it's selector fork deep into the sides of 5th gear!
|

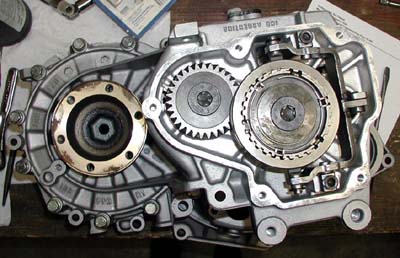

![](zz5fifthgear_t.jpg)
5th never had a chance!!
|
![](zz6almostfinal_t.jpg)

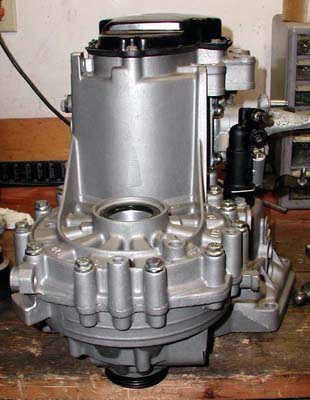

Tranny Housing Cover, Selector Shaft, Relay Lever,
and Gear Selector Lever
|
![](zz7almostfinal_t.jpg)

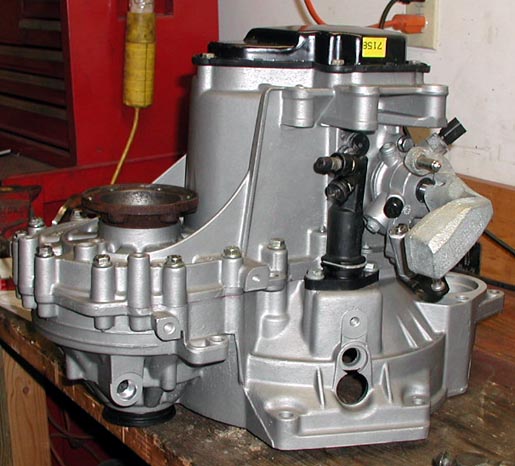

Flange Shaft
|
![](zz8almostfinal_t.jpg)

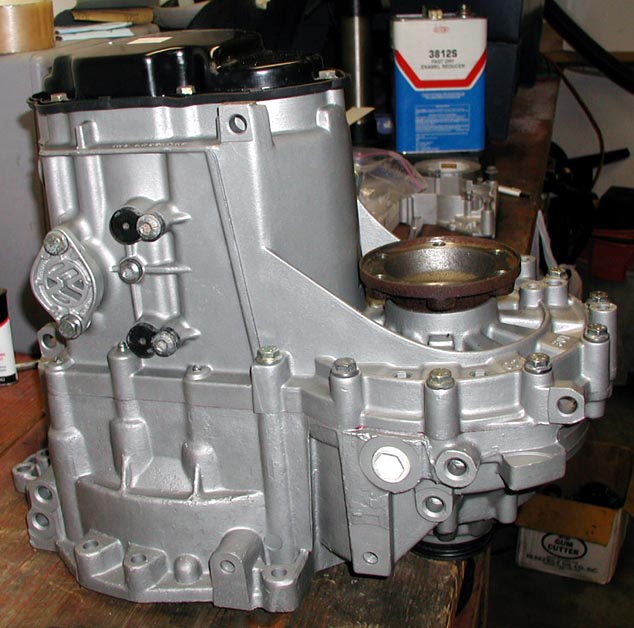

Cool VW Cover Plate
|
![](zz90final_t.jpg)

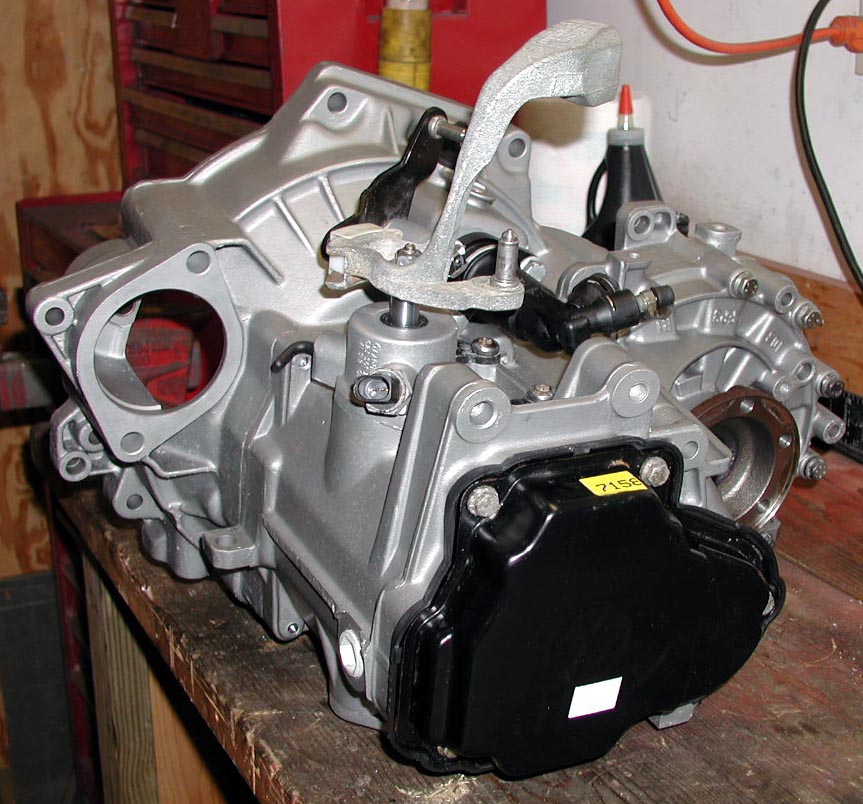

Finally Done!!
|

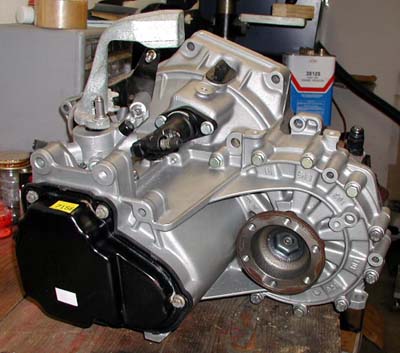

![](zz91final_t.jpg)
The same side just different view in background.....
|
![](zz92final_t.jpg)
Another Angle....
|
![](zz93final_t.jpg)

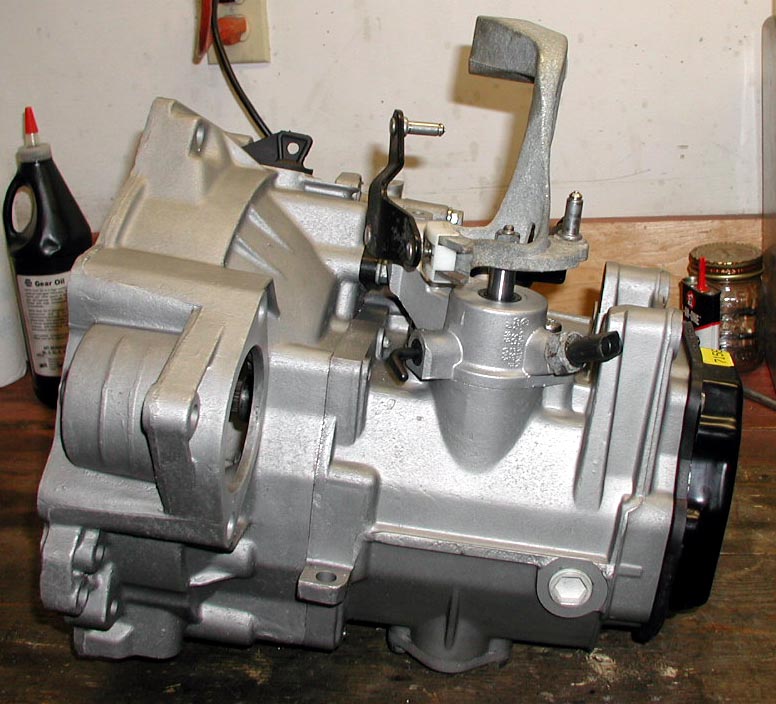

The other side....
|

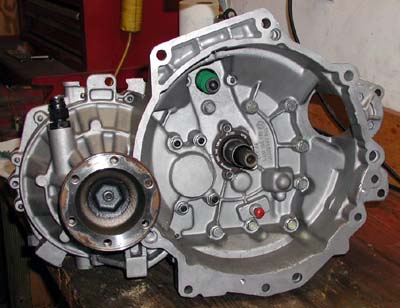

![](zz94final_t.jpg)
The other, other side....
|
|
